Original price was: $26.86.$18.26Current price is: $18.26.
Dovetail design to offer protection against cord pull-out forces
Impact-resistant nylon face and body to enable long-term use
Brass contacts ensure optimal conductivity and resist heat rise
- Product guarantee 100% satisfaction
- Shop quality, shop with us.
- 100% Quality Promise
- Service with a smile, always online.

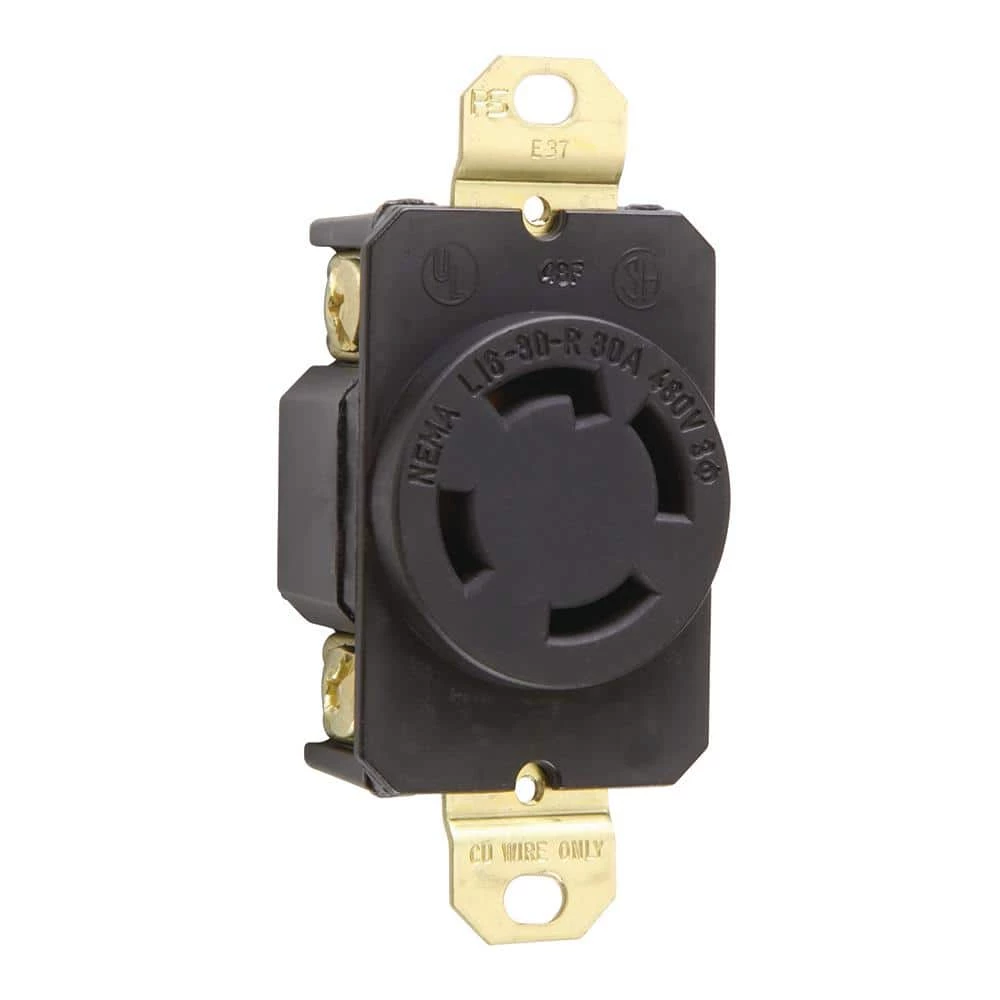

Legrand Turnlok locking receptacles are made to withstand hard use on the jobsite. They feature a compact, impact-resistant face and body that are ultrasonically welded together for unrivalled strength. They also have a single-piece, brass mounting strap is free of easily loosened rivets found on other brands.

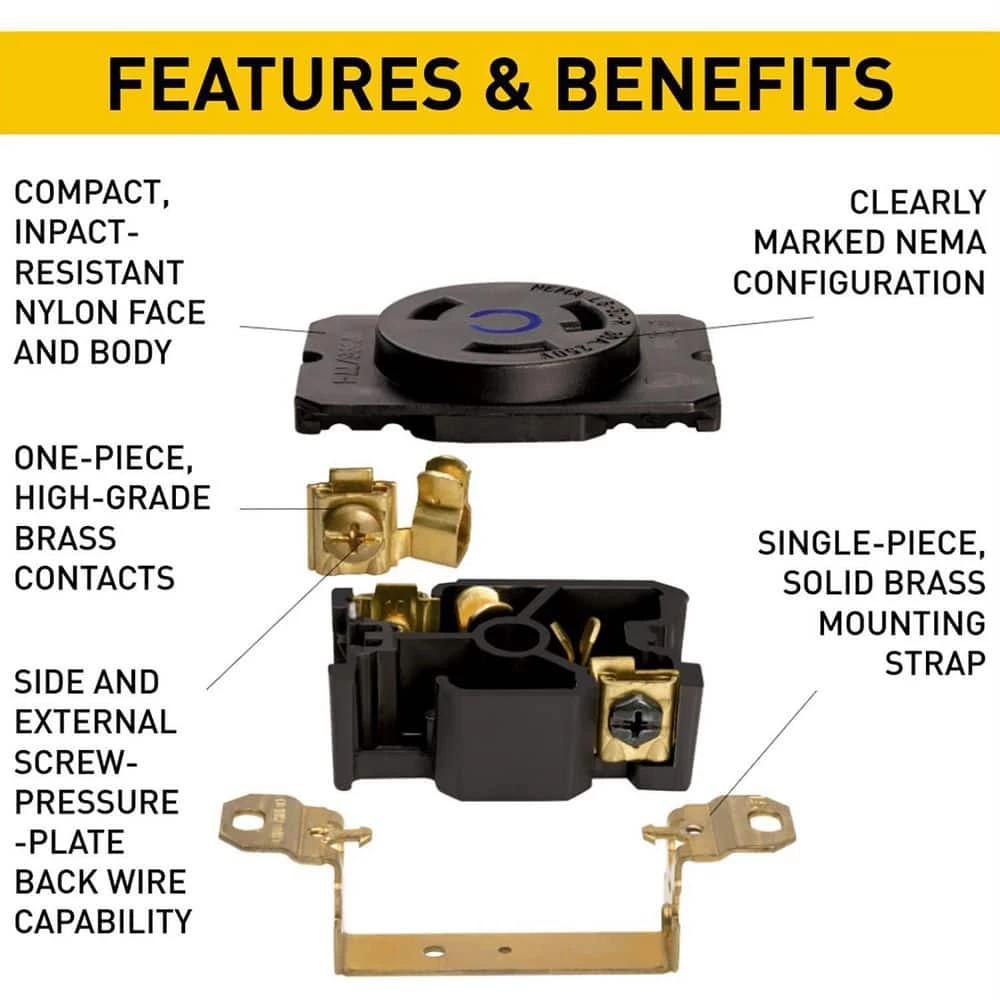

- 1-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance
- 1-piece, brass mounting strap is free of easily loosened rivets found on other brands
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength
- Double dovetail design provides superior protection against cord pull-out forces
- Clearly marked NEMA configuration, rating and third-party listing on each unit’s face
- Side and external screw-pressure-plate back wire capability
- Accepts #14 to #10 AWG
| Color Family | Black |
|---|---|
| Outlet Material | Plastic |
| Outlet Height (in.) | 4.031 |
| Outlet Depth (in.) | 1.19 |
| Manufacturer Warranty | Limited 1 Year |
| Certifications and Listings | CSA Listed,UL Listed |
| Wired or Wireless | Wired |
| Voltage | 480 volt |
| Returnable | 90-Day |
| Rating | General Purpose |
| Package Quantity | 1 |
| Outlet Type | Standard |
| Outlet Location | Wall |
| Color/Finish | Black |
| Outlet Configuration | Single |
| Number of Poles | 3 |
| Number of Outlets | 1 |

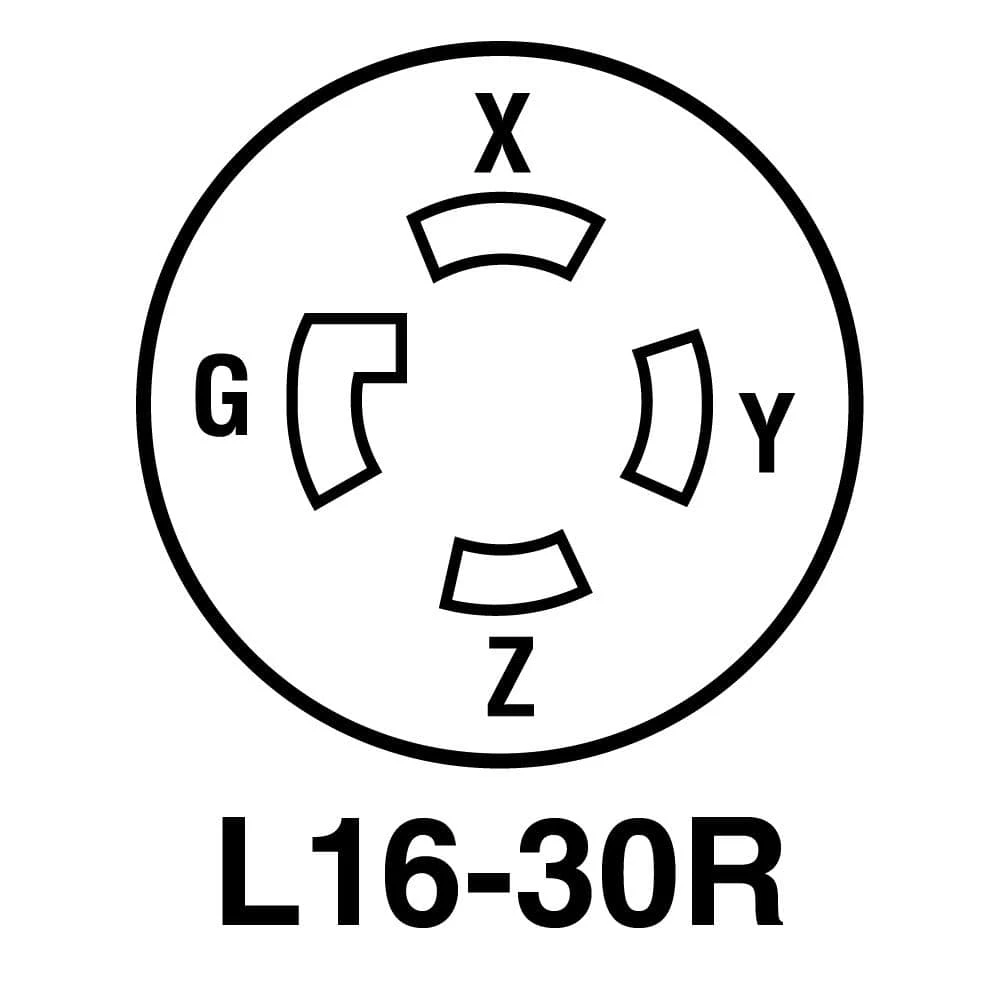

| NEMA Configuration Receptacle | 16-30 |
| NEMA Configuration | NEMA L16 |
| Mounting Type | Wall Mounted |
| Maximum Amperage (amps) | 30 |
| Indoor/Outdoor | Indoor |
| Grounding | Ungrounded |
| Electrical Product Type | Outlet |
| Electrical Features | No Additional Features |
| Outlet Width (in.) | 1.61 |
